204 Bafang Motor 500W Rueda trasera 20 x 4 - 80 mm de ancho
355,83 €*
Número de producto:
WHE-BAF-REA-500-GLBL
Información sobre el producto "204 Bafang Motor 500W Rueda trasera 20 x 4 - 80 mm de ancho"
204 Bafang Motor 500W Rueda trasera 20 x 4 - 80 mm de ancho
- 20 inch rear wheel
- brillante black coated aluminium rim ~ 80 mm / 3,15 inches wide
- 36
spokes 2,6 mm / 0,1 inches
- disc
brake mount ~44 mm / 1,73 inches 6 hole
- Hub
installation dimension approx.: ~ 175 mm / 6,89 inches
- aluminium
hub with industrial bearings
- 500W
- 48V
- Fixed
axle: ~ 12 mm / 0,47 inches diameter
- Mounting
for cassette

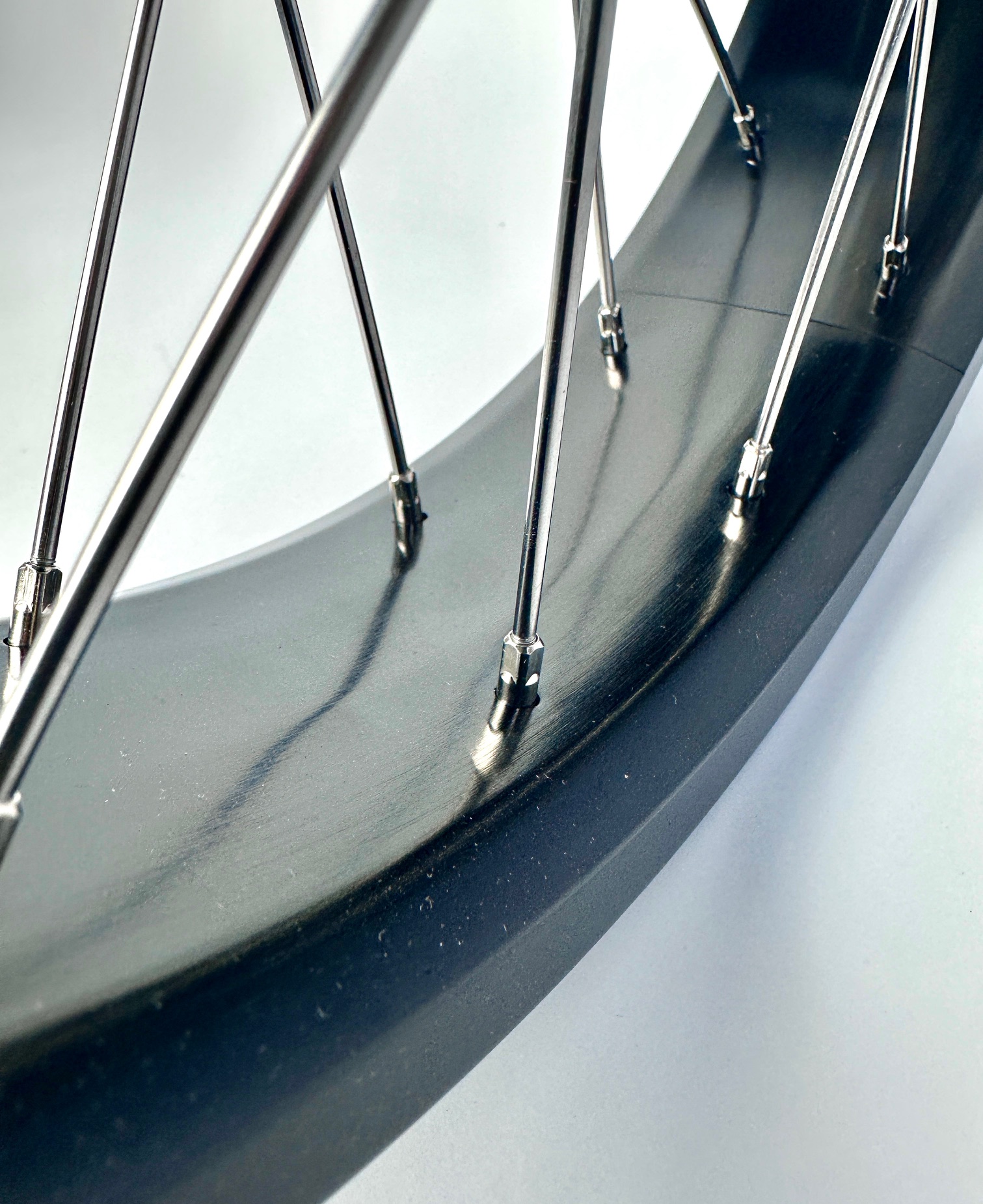

- Rim
width: ~ 80 mm / 3,15 inches
- With
rim tape
- Weight:
~ 4800 g / 10,58 lbs
Specification Motor:
Core Data
|
Position |
Rear Motor |
|
Construction |
Gear drive |
|
Rated Voltage (DCV) |
48 |
|
n0 (Rpm) |
325 ; 245 |
|
Rated Power (W) |
500 |
|
nT(Rpm) |
290 ; 205 |
|
Max Torque |
80 N.m |
|
Efficiency (%) |
≥ 80 |
|
Color |
Black |
|
Weight (kg) |
4.1 |
|
Noise Grade (dB) |
＜55 |
|
Operating Temperature |
-20 - 45℃ |
Mounting Parameters
|
Brake |
Disc Brake |
|
Installation Widths (mm / OLD) |
175 |
|
Max. Housing Diameter (mm) |
158.5 |
|

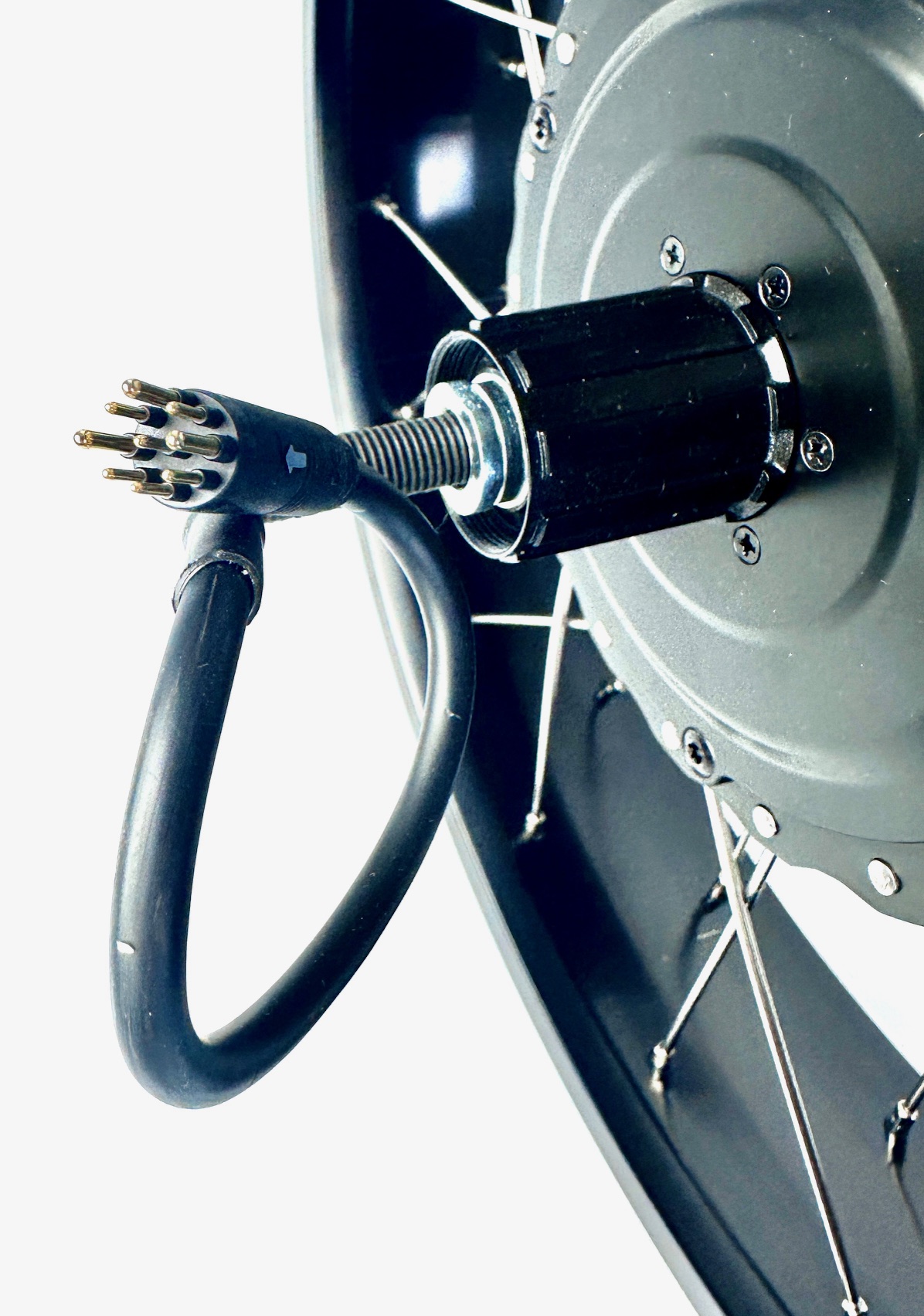

Cabling Route |
Through Shaft, Right |
|
Cable Length(mm), Connection Type |
250 G9.1 / G9.5 |
|
Gearshift |
Cassette |
|
Spoke Specification |
36H*12G |
Tests & Certifications
|
IP |
IP X5 |
|
Certifications |
ROHS / CE |
|
Salt Spray Test Standard(h) |
96 |
